PVC sheet piles: Structure and practical applications

PVC sheet piles are an effective alternative to steel and concrete sheet piles in many hydraulic engineering, erosion control, and soft ground improvement projects. To ensure mechanical strength, weather resistance, and long outdoor service life, the quality of PVC compound plays a critical role. Understanding the structure, properties, and factors affecting PVC sheet pile quality helps businesses optimize production efficiency and enhance product value.

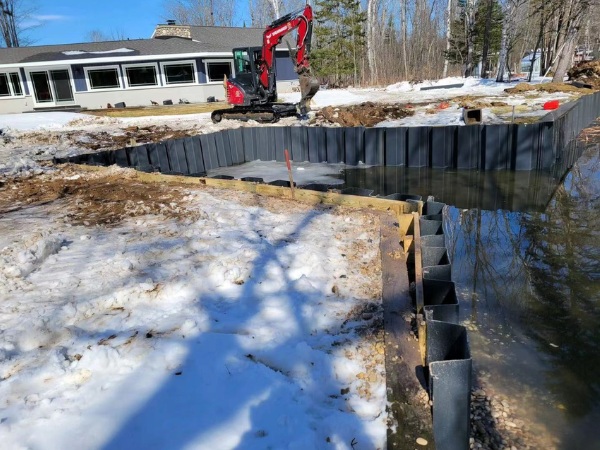

PVC sheet piles with a corrugated profile

What Are PVC Sheet Piles?

PVC sheet piles are profile-formed sheeting products manufactured primarily from Polyvinyl Chloride (PVC) resin combined with rigidity-enhancing additives, UV stabilizers, and corrosion inhibitors.

These products are designed as thin-panel sections with interlocking joints along both longitudinal edges. During installation, the interlocking joints connect tightly to form a continuous, seamless wall capable of bearing loads, retaining water, and holding soil effectively.

Structure and Characteristics of PVC Sheet Piles

The quality and service life of PVC sheet piles depend significantly on both the constituent materials and the structural design of the product.

• Core material: Typically manufactured from uPVC or specialty PVC compound, providing high rigidity, excellent waterproofing, and corrosion resistance in wet environments.
• Additive system: Includes heat stabilizers, UV stabilizers, impact modifiers, and processing aids. These additives help maintain mechanical strength, minimize aging, and prevent cracking during outdoor use.
• Geometric design: Sheet piles are typically designed in U-profile, Z-profile, or ribbed cross-sections to enhance flexural and compressive performance and distribute loads efficiently.

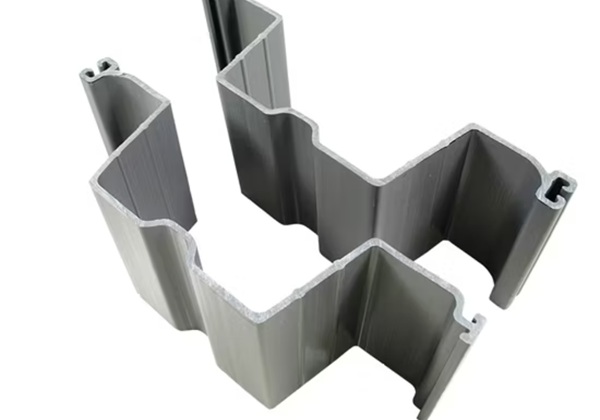

Additives are one of the key factors determining PVC sheet pile quality

Advantages of PVC Sheet Piles in Construction and Hydraulic Engineering

PVC sheet piles offer numerous advantages that meet the technical and economic requirements of modern construction projects.

• Corrosion resistance: Unlike steel sheet piles, which are prone to rusting, or timber piles, which are susceptible to rot, PVC is completely inert to saltwater, brackish water, and common chemical exposure.
• Outstanding service life: Thanks to high chemical durability, structures using PVC sheet piles can achieve service lives of 50 years to several decades with no complex maintenance requirements.
• Lightweight and easy to install: The optimized weight makes transportation and handling straightforward, significantly reducing labor costs and the need for heavy machinery during installation.
• Environmentally friendly and aesthetically pleasing: A smooth surface finish in neutral tones such as gray and green enhances urban aesthetics, while PVC as a material is recyclable and does not contaminate water sources.

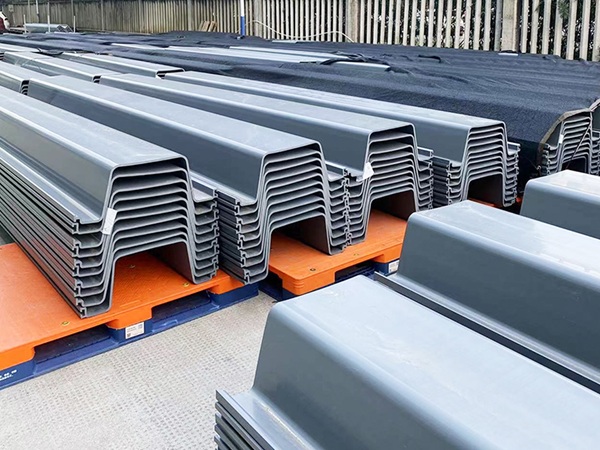

PVC sheet piles offer advantages in durability and corrosion resistance.

Limitations of PVC Sheet Piles to Consider

For safe and effective application, contractors should be aware of the following limitations:

• Limited longitudinal load-bearing capacity: As a plastic-based product, its stiffness and flexural resistance cannot match that of steel or prestressed concrete sheet piles under extremely demanding geotechnical conditions.
• Soil condition sensitivity: Direct installation is difficult in geological layers that are too hard, contain large cobblestones, or have significant root systems, without pre-drilling or water jetting assistance.
• Depth limitations: PVC sheet piles typically deliver their best technical and economic performance in projects where the retaining wall height is low to moderate (generally under 8 meters).

Real-World Applications of PVC Sheet Piles

With their many advantageous properties, PVC sheet piles are widely used across a variety of sectors. The following are the most common applications today.

Riverbank Revetments and Hydraulic Structures

PVC sheet piles are commonly used in river revetments, irrigation canals, and hydraulic engineering systems. Installation along riverbanks helps control soil erosion caused by water flow, protecting bank structures and adjacent infrastructure.

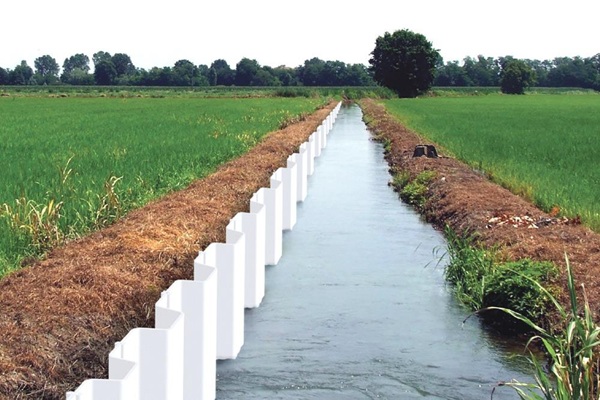

PVC sheet piles installed along inland canal and irrigation channel banks

Seawalls and Coastal Protection Works

Thanks to their corrosion resistance in saltwater environments, PVC sheet piles are used in coastal projects such as embankments, shoreline protection revetments, and small-scale wave barriers. The material helps maintain structural stability under conditions of constant seawater exposure.

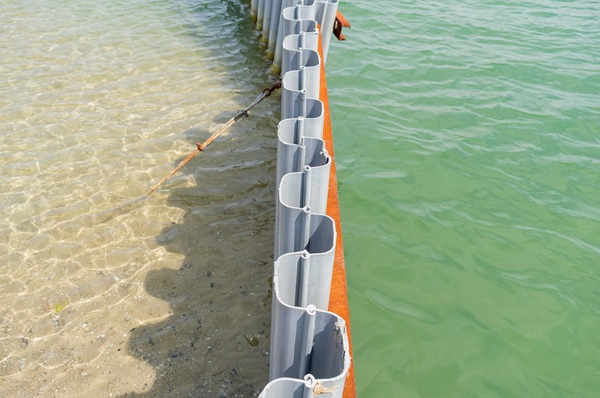

Round-wave PVC sheet piles installed in coastal waters.

Water Retention Ponds and Aquaculture Facilities

In aquaculture, PVC sheet piles are used to construct pond partition walls, reinforce pond embankments, and build water retention basins. The interlocking joint system between panels enhances waterproofing performance and supports stable operating conditions within aquaculture areas.

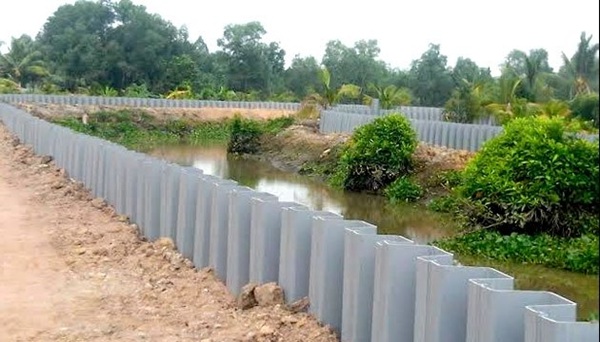

PVC sheet piles used to reinforce river and canal embankments

Retaining Walls and Landscape Projects

PVC sheet piles are also used as retaining walls in parks, urban developments, resort projects, and riverside landscaping. This solution provides ground stabilization while meeting the aesthetic requirements of the project

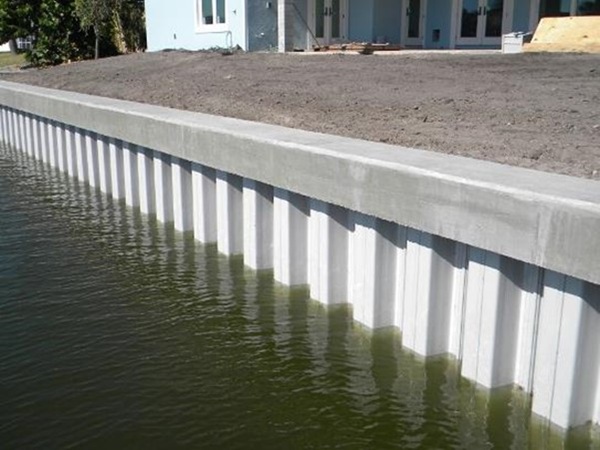

PVC sheet pile retaining walls stabilize soil and enhance landscapes.

Drainage Systems and Shallow Excavations

In civil infrastructure works, PVC sheet piles are used to form partition walls for drainage systems, utility trenches, and temporary shoring for shallow foundation excavations. Their use helps prevent soil collapse and mitigates the impact of groundwater on construction zones.

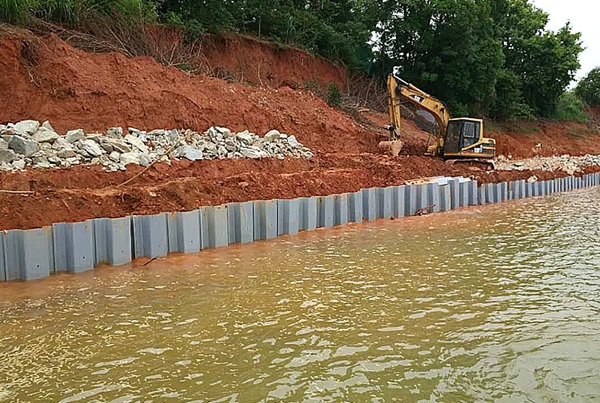

Installation of PVC sheet piles as a retaining wall for a riverside foundation pit

APEX Vietnam - High-Quality Plastic Additive Supplier

Producing PVC sheet piles that meet technical standards for impact strength, load-bearing capacity, and weather resistance begins with the quality of input raw materials. With this in mind, APEX Vietnam is committed to delivering material solutions - most notably customized PVC compound formulations - that support precise profile extrusion, enhanced mechanical toughness, and improved flexural moment resistance.

With their outstanding durability, corrosion resistance, and installation flexibility, PVC sheet piles are an effective solution for a wide range of construction and hydraulic engineering projects. If your business is looking for high-quality plastic additive raw materials or requires specialized technical consultation, contact APEX Vietnam today at Hotline 0274 362 0911 for prompt support.
